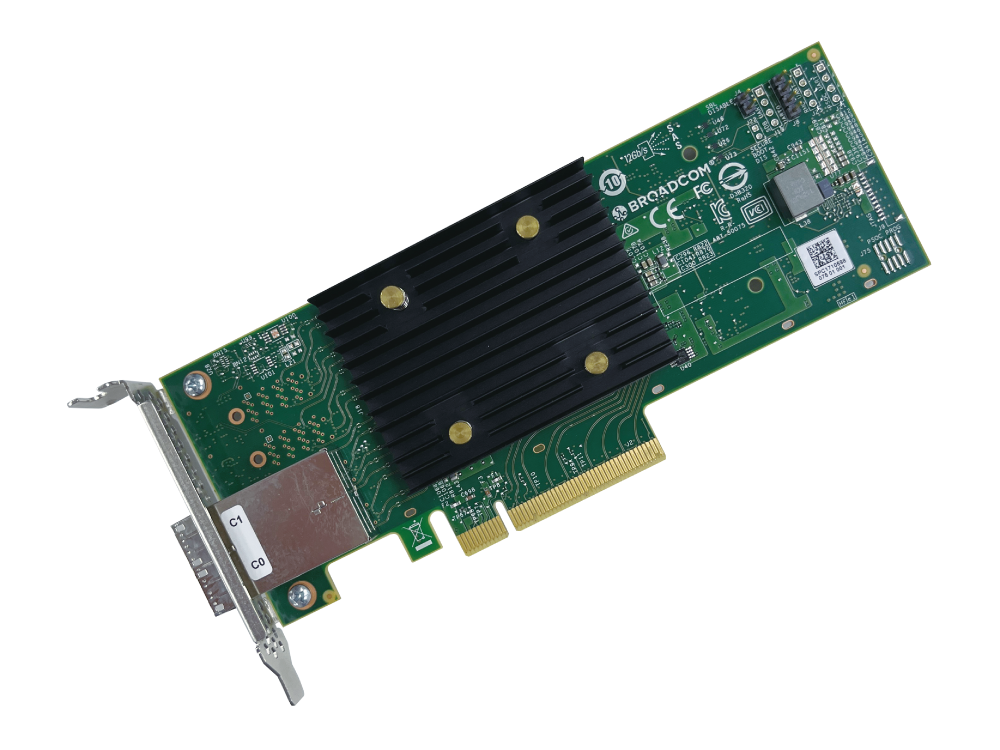

BROADCOM製 HBA 9500-8e/HBA 9500-16e SASカード

Lifecycle

Active

Active

Brackets

Full height and low profile

Full height and low profile

Devices Supported

SAS/SATA: 1024, NVMe: 32

SAS/SATA: 1024, NVMe: 32

External Connectors

2 x4 SFF-8644 (ext HD)

4 x4 SFF-8644 (ext HD)

External Ports

8

16

Generation

12 Gb/s

12 Gb/s

Host Bus Type

x8 lane PCI Express 4.0

x8 lane PCI Express 4.0

I/O Controller

SAS3808

SAS3816

Management Software

LSI Storage Authority (LSA)
StorCLI (Command-Line Interface)
HII (UEFI Human Interface Infrastructure)

LSI Storage Authority (LSA)
StorCLI (Command-Line Interface)
HII (UEFI Human Interface Infrastructure)

MTBF

> 5,000,000 hours at 40° C

> 5,000,000 hours at 40° C

Operating Humidity

20% to 80% Non-condensing

20% to 80% Non-condensing

Operating Temperature°C

0°C to 55°C

0°C to 55°C

OS Support

Microsoft Windows
VMware vSphere/ESXi
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Citrix XenServer
CentOS Linux
Ubuntu Linux
Debian Linux
Oracle Enterprise Linux
Fedora
FreeBSD

Microsoft Windows
VMware vSphere/ESXi
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Citrix XenServer
CentOS Linux
Ubuntu Linux
Debian Linux
Oracle Enterprise Linux
Fedora
FreeBSD

Physical Dimensions

167.65 (+/-0.13) mm x 68.77 (+/-0.13) mm

167.65 (+/-0.13) mm x 68.77 (+/-0.13) mm

Regulatory Certifications

Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE

Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE

Typical Power

6.12W

8.74W
