QLE2600(16Gbps)FCカード

Bus Interface

PCI Express® (PCIe®) 3.0 x8

PCI Express® 3.0 x8

Host Interrupts

INTx and MSI-X

INTx and MSI-X

Compliance

• PCI Express Base Specification, Rev. 3.1
• PCI Express Card Electromechanical Specification, Rev. 3.0
• PCI Bus Power Management Interface Specification, Rev. 1.2
• PCI Hot Plug Specification, Rev 1.1

• PCI Express Base Specification, Rev. 3.1
• PCI Express Card Electromechanical Specification, Rev. 3.0
• PCI Bus Power Management Interface Specification, Rev. 1.2

Throughput

3,200MBps full duplex line rate per port

3,200MBps bandwidth per port

Logins

Support for 2,048 concurrent logins and 2,048 active exchanges per port

• Support for 2,048 concurrent logins and 2,048 active exchanges
• Expandable to 32K concurrent logins and 32K active exchanges (with DDR3 or host memory)

Port Virtualization

NPIV

NPIV

Compliance

• Fibre Channel Physical Interface 5 (FC-PI5)
• Fibre Channel Tape (FC-TAPE) Profile
• SCSI Fibre Channel Protocol-4 (FCP-4)
• SCSI-3 Fibre Channel Protocol (SCSI-FCP)
• Second Generation Fibre Channel Generic Services (FC-GS-2)
• Third Generation Fibre Channel Generic Services (FC-GS-3)
• Fibre Channel-NVMe-2 (FC-NVMe-2)

• SCSI-3 Fibre Channel Protocol (SCSI-FCP)
• Fibre Channel Tape (FC-TAPE) Profile
• SCSI Fibre Channel Protocol-2 (FCP-2)
• Second Generation Fibre Channel Generic Services (FC-GS-2)
• Third Generation Fibre Channel Generic Services (FC-GS-3)
• Fibre Channel Physical Interface 5 (FC-PI5)

Management Tools and Device Utilities

• QConvergeConsole CLI: a unified management tool that supports multiple generations of Marvell FC adapters
• MCTP/PLDM
• ESXCLI Plug-in for vSphere
• MRVLFC PowerKit (cmdlets for Windows PowerShell)
• QCC Plug-ins for vSphere
• Marvell QLogic FC QCC Extension for Windows Admin Center

QConvergeConsole: a unified management tool (GUI and CLI) that spans generations of QLogic FC adapters
‒ VMware vCenter Server Plug-in
‒ VMware vSphere™ Web Client Plug-in

Boot Support

• BIOS
• Unified Extensible Firmware Interface (UEFI)
• Forth code (FCode)

• BIOS
• Unified Extensible Firmware Interface (UEFI)
• FCode

APIs

• SNIA HBA API V2
• SMI-S

• SNIA HBA API V2
• SMI-S

Operating System Support

For the latest applicable operating system information, see www.marvell.com

For the latest applicable operating system information, see www.marvell.com

Performance

• QoS CS_CTL
• FEC
• BB-CR: automatic buffer credit loss detection and recovery
• FPIN for Congestion Mitigation

• QoS CS_CTL
• FEC
• BB-CR: automatic buffer credit loss detection and recovery
• FPIN for Congestion Mitigation

Diagnostics

• Diagnostics Port
• LCB
• RDP

• Diagnostics Port
• LCB
• RDP

Deployment and Management

• FA-WWN
• F-BLD
• FC ping
• FC traceroute
• VM-ID
• Fabric device management interface (FDMI) enhancements

• FA-WWN
• F-BLD
• FC ping
• FC traceroute
• VM-ID
• Fabric device management interface (FDMI) enhancements

Ports

• QLE2690: single-port, 16GFC

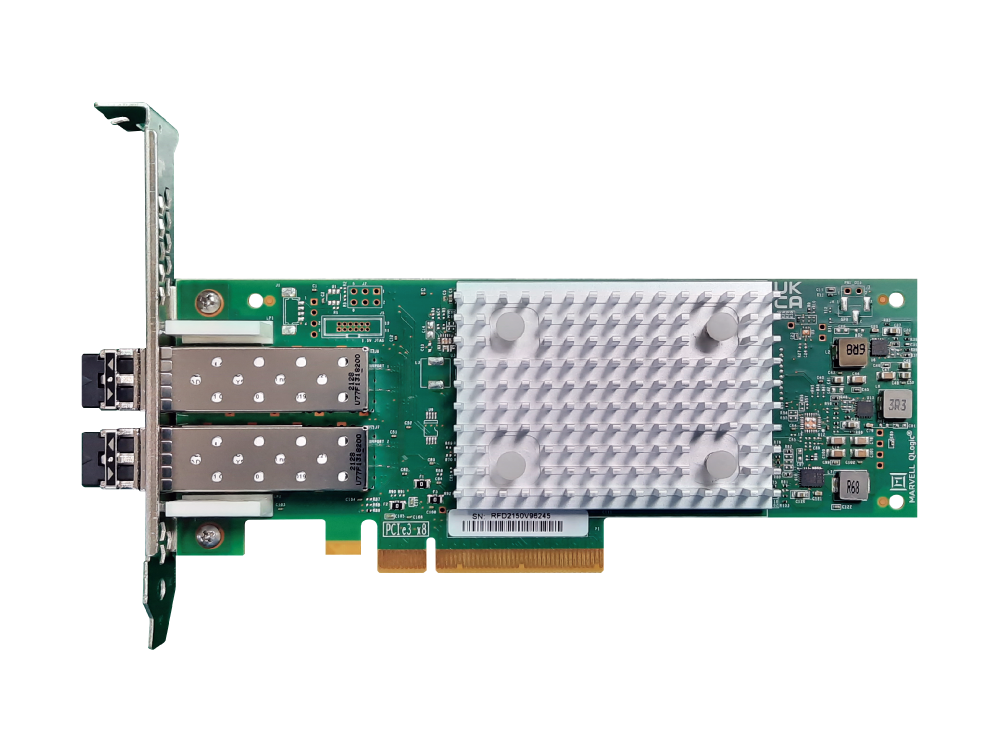

• QLE2692: dual-port, 16GFC

Quad-port, 16GFC

Form Factor

• Low-profile PCIe card (6.6 inches × 2.731 inches)
• Custom form factors are also available

Standard-height PCIe card (6.6 inches × 4.381 inches)

Temperature

• Operating: 0°C to 55°C (32°F to 131°F)
• Storage: –20°C to 70°C (–4°F to 158°F)

• Operating: 0°C to 55°C (32°F to 131°F)
• Storage: –20°C to 70°C (–4°F to 158°F)

Humidity

• Operating: 10% to 90%
• Storage: 5% to 95%

• Operating: 10% to 90%
• Storage: 5% to 95%
